Cast Iron Polyurethane Caster

Caster Description

Roda polyurethane merah dengan cast iron pada bagian tengah roda. Caster tipe ini termasuk ke dalam golongan caster heavy duty. Cocok digunakan di industri yang membutuhkan beban berat/heavy duty.

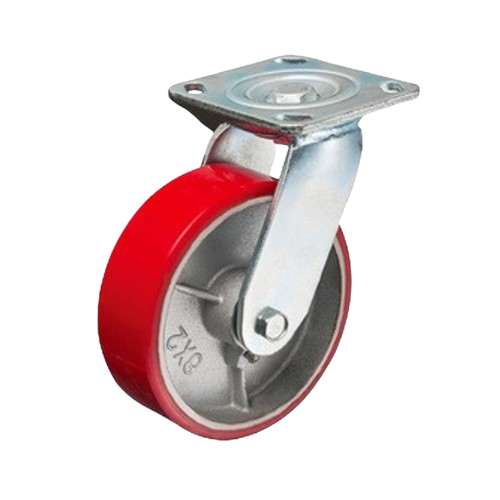

Swivel Caster

Product No.	Wheel Type	Bearing	Load Capacity	Total Height	Wheel Width	Top Plate Size	Bolt Hole Distance
SW 100 CTU /4"	Urethane	Ball Bearing	270 Kg	145 mm	50 mm	114 × 100 mm	92 × 67 mm
SW 125 CTU /5"	Urethane	Ball Bearing	320 Kg	160 mm	50 mm	114 × 100 mm	92 × 67 mm
SW 150 CTU /6"	Urethane	Ball Bearing	430 Kg	190 mm	50 mm	114 × 100 mm	92 × 67 mm
SW 200 CTU /8"	Urethane	Ball Bearing	480 Kg	240 mm	50 mm	114 × 100 mm	92 × 67 mm

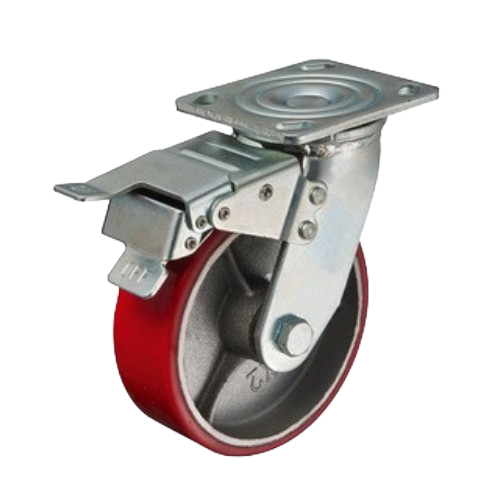

Swivel Brake Caster

Product No.	Wheel Type	Bearing	Load Capacity	Total Height	Wheel Width	Top Plate Size	Bolt Hole Distance
SB 100 CTU /4"	Urethane	Ball Bearing	270 Kg	145 mm	50 mm	114 × 100 mm	92 × 67 mm
SB 125 CTU /5"	Urethane	Ball Bearing	320 Kg	160 mm	50 mm	114 × 100 mm	92 × 67 mm
SB 150 CTU /6"	Urethane	Ball Bearing	430 Kg	190 mm	50 mm	114 × 100 mm	92 × 67 mm
SB 200 CTU /8"	Urethane	Ball Bearing	480 Kg	240 mm	50 mm	114 × 100 mm	92 × 67 mm

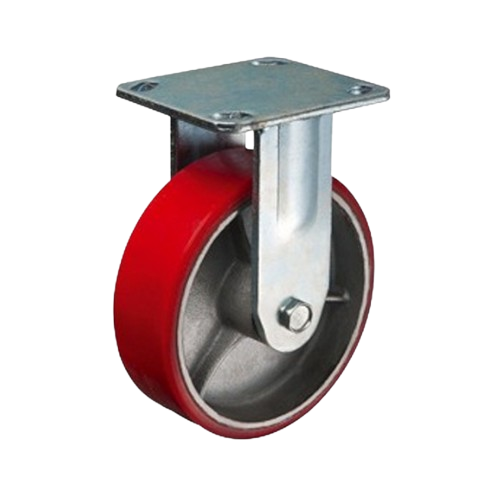

Fixed Caster

Product No.	Wheel Type	Bearing	Load Capacity	Total Height	Wheel Width	Top Plate Size	Bolt Hole Distance
FX 100 CTU /4"	Urethane	Ball Bearing	270 Kg	145 mm	50 mm	114 × 100 mm	92 × 67 mm
FX125 CTU /5"	Urethane	Ball Bearing	320 Kg	160 mm	50 mm	114 × 100 mm	92 × 67 mm
FX 150 CTU /6"	Urethane	Ball Bearing	430 Kg	190 mm	50 mm	114 × 100 mm	92 × 67 mm
FX 200 CTU /8"	Urethane	Ball Bearing	480 Kg	240 mm	50 mm	114 × 100 mm	92 × 67 mm
